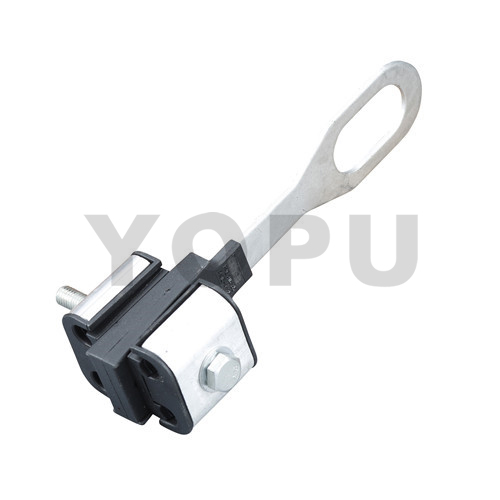

Application:
The PAC anchoring branch clamp is used to fix the two-core and four-core self-supporting insulated wire which have the same cross section.
Features:
1) The clamp is made of dielectric material, which has insulation. The body materials are UV-resistant.
2) All parts are wedges and special spanner is needed.

| Iteam No. | Cross section(mm²) | Conductor(mm) | Breaking load |
| PAC-235 | 2X(16-35) | 4-8 | 6KN |
| PAC-435 | 4X(16-35) | 4-8 | 8KN |
