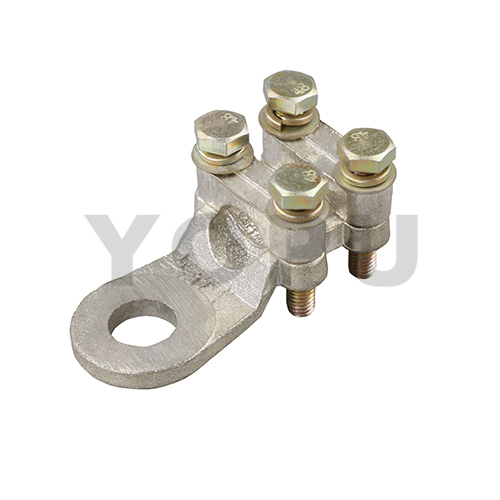

WCJC Brass Jointing Clamp

+86 577 61735818

gm@yopugroup.com

Application:
WCJC Brass Jointing Clamp is fixed by bolts and used in the connections between the electrical equipment with cable and the indoor distribution equipment.

Features：
1) The surface is nickel plated.
2) WCJC Brass Jointing Clamp range is from 16 sqmm to 500 sqmm.

Advantages：
1) They can be reused many times.
2) Various kinds of size, meet with the customers’ requirements.

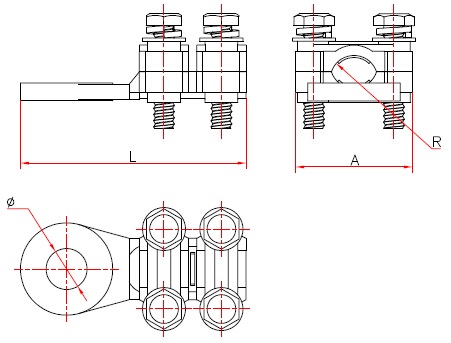

Item No.	Conductor(mm²）	φ	A	L	R
WCJC-1	16	7.5	21	37	3
WCJC-2	25-35	11	22	48	4
WCJC-3	50-70	11	31	60	5.5
WCJC-4	120-150	15	35	70	8.5
WCJC-5	210-250	17	46	90	10.5
WCJC-6	300	21	56	115	12
WCJC-7	400-500	23	62	125	15
