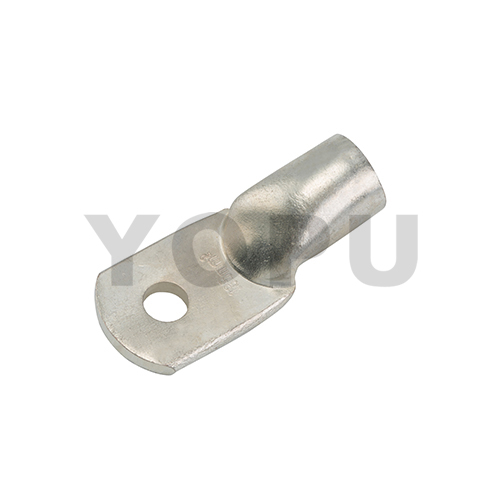

Copper Crimp Lug short barrelJG type
Application:
JG Copper Copper Crimp Lugs are suitable for the connection of copper conductors(section 10-300mm2) in power cable with electronic equipment.
Feature:
1. Have a viewing window to check the location of the conductor
2. Unique bell mouth for easy insertion of stranded conductors
3. Material: CU≥99.9%
4. Surface: electro tin plated
5.Application: low voltage, indoor
6.We also can produce 2 holes or 3 holes

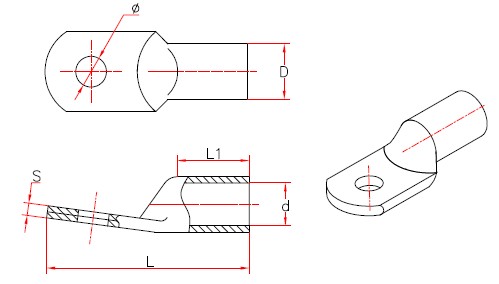

| Item No. |
Φ±0.5 |
D±0.5 |
d±0.5 |
L±2 |
L1±2 |
W±0.5 |
S±0.5 |
Weight(g) |
| JG-10 |
Φ6.5 , Φ8.5 |
8 |
5.8 |
38 |
12 |
11.4 |
2.0 |
7.7 |
| JG-16 |
Φ6.5 , Φ8.5 |
9 |
6.8 |
41 |
15 |
12.9 |
2.1 |
9.5 |
| JG-16 |
Φ10.5 |
9 |
6.7 |
41 |
15 |
14.5 |
2.0 |
9.5 |
| JG-25 |
Φ8.5,Φ10.5 |
10 |
7.8 |
46 |
16 |
14.5 |
2.2 |
10.5 |
| JG-35 |
Φ8.5,Φ10.5 |
11 |
8.8 |
52 |
17 |
16.2 |
2.2 |
14.8 |
| JG-35 |
Φ12.5 |
11 |
8.8 |
52 |
17 |
17.6 |
2.1 |
14.8 |
| JG-50 |
Φ8.5,Φ10.5 |
13 |
10.5 |
54 |
18 |
19.0 |
2.5 |
21.6 |
| JG-50 |
Φ12.5 |
13 |
10.5 |
54 |
18 |
19.4 |
2.5 |
21.6 |
| JG-70 |
Φ8.5,Φ10.5,Φ12.5 |
16 |
12.7 |
61 |
19 |
23.2 |
3.3 |
39.6 |
| JG-95 |
Φ10.5,Φ12.5 |
18 |
14.6 |
66 |
19 |
26.0 |
3.3 |
50 |
| JG-120 |
Φ10.5,Φ12.5,Φ14.5 |
20 |
15.8 |
72 |
20 |
29.0 |
4.0 |
63 |
| JG-150 |
Φ10.5,Φ12.5,Φ14.5 |
22 |
17.2 |
75 |
21 |
32.0 |
4.1 |
73 |
| JG-185 |
Φ12.5,Φ14.5,Φ16.5 |
25 |
19.5 |
86 |
25 |
36.3 |
5.2 |
109 |
| JG-240 |
Φ14.5,Φ16.5 |
27 |
20.9 |
93 |
27 |
38.5 |
5.8 |
158 |
| JG-300 |
Φ16.5 |
30 |
24.0 |
103 |
30 |
43.3 |
6.0 |
216 |
