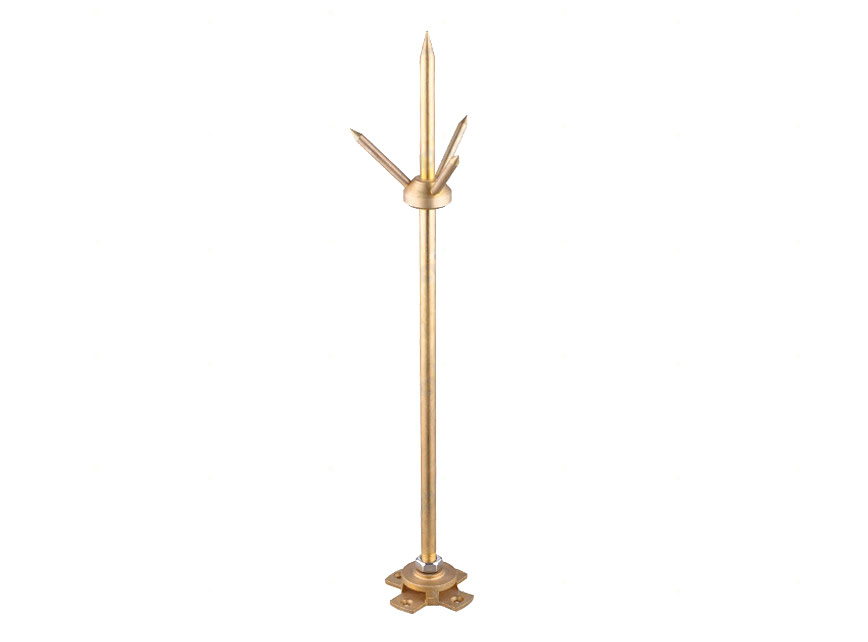

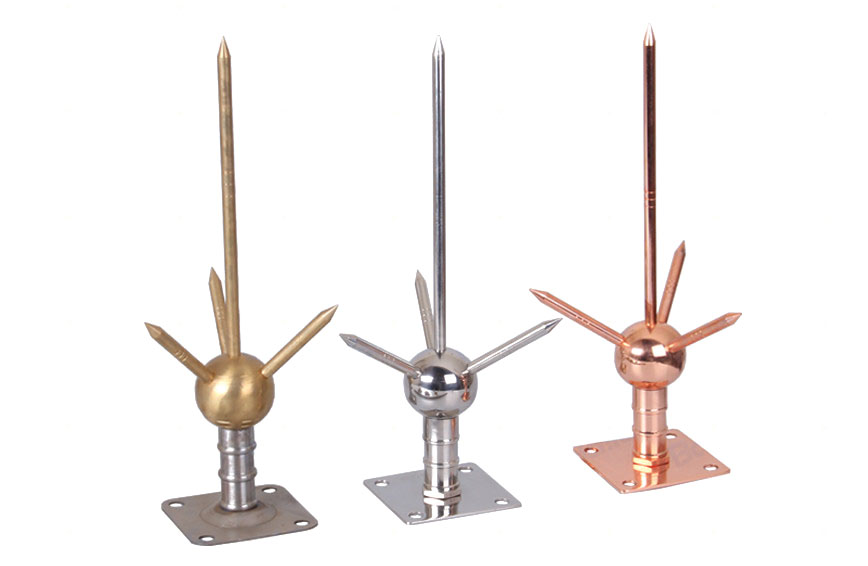

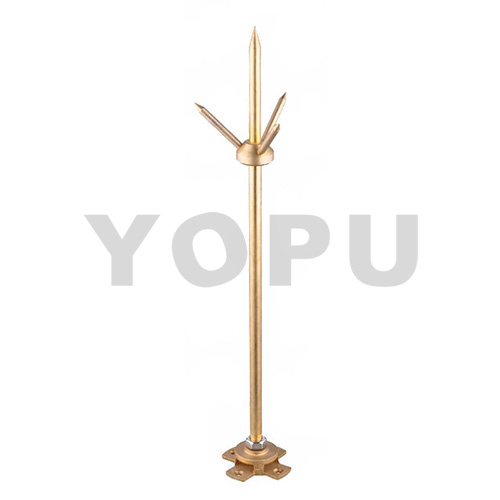

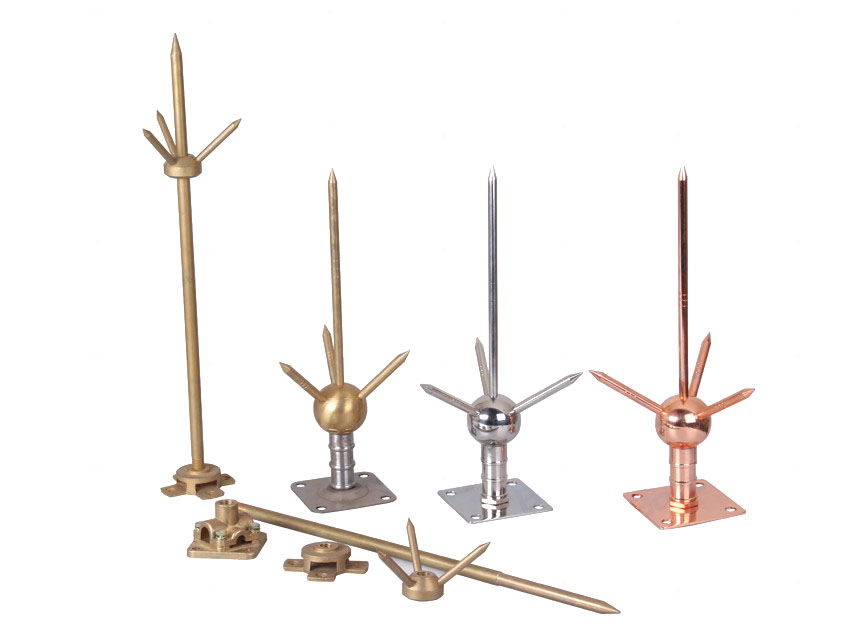

As Lightning Arrester Manufacturer In China,Lightning Arrester is used for protecting the buildings to avoid lightning strike. Lightning Rod plays an important part of the air termination network of a lightning protection system.We are professional lightning rod manufacturer.

Lightning arrester,alternate named lightning protection devices,used for protecting the building when raining and lightning .The lightning rod installed on the building and transfer the electric to earthing metal to protect the building . Our SLE lightning rod comply with GB standard . Customized lightning rod available .

(A)The installation of lightning rod

Matters need attention during installation:

(1)The lightning rod and other metal part on the building should connected together;

(2)No low voltage cable or communication cable installed on the rod

(B)Installation of earthing tape and earthing grid

1. Installation of exposed earthing tape (grid) :Installed at the ridge ,eave(abat-vent) or edge of roof

(1)Installation at the concrete base of roof :The base can be made with the roof together ,and fixed to the roof.

( 2) Installation on the parapet wall or gutter bracket

Installed along parapet wall and fixed with bracket ,and the bracket should be installed earlier .The working height of bracket should be less than 150mm . The bracket for direct line should be first and then for the middle .The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution

 (3) Installation at ridge ,eave or edge of roof

Use concrete base or bracke

If make the base on site , please remove the corner of ridge tile first ,and make the bracket and ridge tile together;

The bracket should be 0.25-0.5m away to the turning point if turning needed . The horizontal spacing of bracket is 1-1.5m ,and vertical interval is 1.5-2m and even distribution

Lightning arrester is used for lightning system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
