Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.

Effective resistance reducing : The resistance reducing agent absorb the water from soil to reduce the resistance and keep stable ;

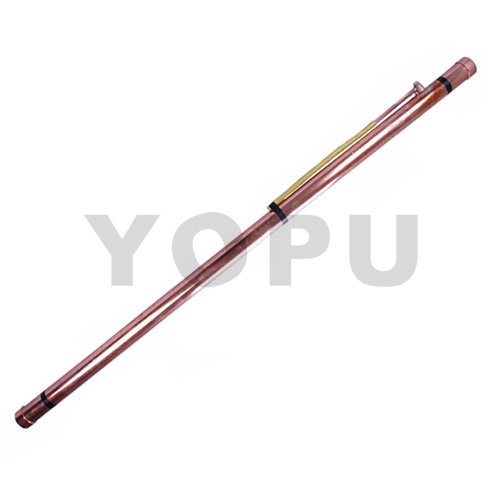

Stable resistance reducing result: The electrolytic ion grounding rod act one week later after installation ,and little effected by the temperature and humidity ,the life can be 30 years ;

Good anti corrosion and conductivity: Good anti-corrosion and conductivity obtained with Skin-effect and pure copper material;

No maintenance cost: No special care after installation ,and the maintenance cost is very low ;

Shiny surface: Experienced workman make the rods with advanced machines ,and the surface is more shiny;

Simple installation: Simple installation both by machine and hand are ok ,and the installation cost is very economical;

Long life: Max copper thickness at single side can reach 0.5mm and theoretical life can reach 30 years ;

Quality accessories: The accessories of rod are made with quality material and 8 years.

Chemical Ground Electrodes is used for grounding system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

1).Drilling: Dill the hole about 140mm×3500mm on the earth , or dig the channel about 300mmx3500x800mm and install the grounding rod . Multi grounding rods should be connected by the channel 350mmx600mm .

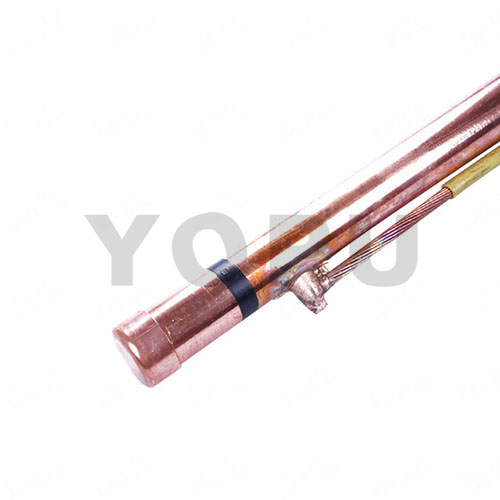

2).Install the ion grounding rod and connect lead wire Remove the seal tape of water absorbing hole and releasing hole (Must );Put the electrode into assy hole ;Connect the lead wire with anti-corrosion bolt and welded with exothermic welding;

If grounding grid is needed with multi grounding electrodes , 95mm2 copper stranded wire or galvanized round wire or galvanized tape is recommended to connected with exothermic welding

3).Fix bentonite and water and fill Fix bentonite and water with the ratio 1:1 Fill the bentonite and about 50mm higher than electrode , and stir with stick to exhaust the air ;Check the connect the refill the soil ,no stone ,stick or plastic piece left.

4).Test the resistance : Test the resistance 3 days later after installation , and retest one month later and six month later to observe the change.

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
