Product Description

Copper Clad Steel Flat Bar is a efficient earthing terminal bus block ,it can be used to test the current towards,it is popular used in earthing system. We can produce the Copper Sheet according to customers' requirement.

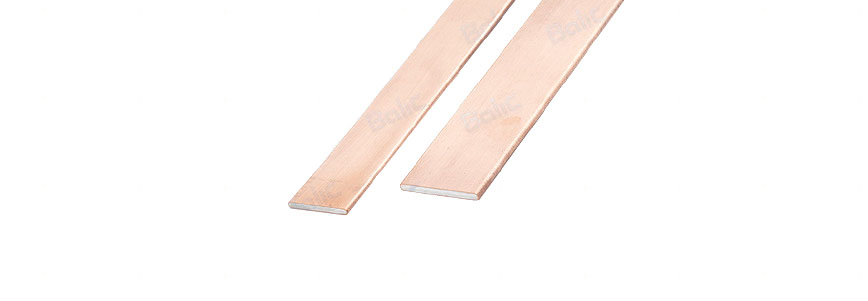

Copper Clad Steel Flat Bar (2)

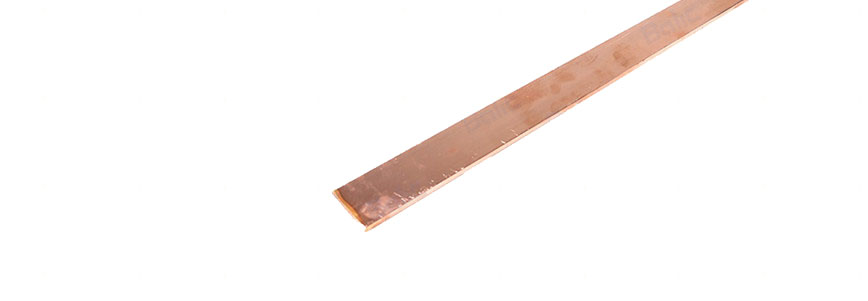

Copper Clad Steel Flat Bar (3)

Product Parameter

Material	copper clad steel or pure copper 99.95% or tinned copper
Length	300mm-6000mm
Width	20mm-600mm
Thickness	2mm-20mm
Surface	Copper surface is available
Service life	More than 50 years
Characters	Strong anticorrosion, high conductivity

Product Size

Product specifications	Area(mm2)	Copper thickness(mm)	Size(Length)	Weight(kg/m)	Weight(kg/3m)	Weight(kg/6m)
CCSEP30-25×4	100	≥0.25	3m or 6m	0.796	2.387	4.774
CCSEP30-27×7	189	≥0.25	3m or 6m	1.493	4.478	8.956
CCSEP30-30×3	90	≥0.25	3m or 6m	0.72	2.16	4.319
CCSEP30-30×4	120	≥0.25	3m or 6m	0.954	2.863	5.727
CCSEP30-40×4	160	≥0.25	3m or 6m	1.272	3.816	7.632
CCSEP30-40×5	200	≥0.25	3m or 6m	1.584	4.753	9.507
CCSEP30-50×5	250	≥0.25	3m or 6m	1.98	5.94	11.88
CCSEP30-50×6	300	≥0.25	3m or 6m	2.371	7.112	14.223
CCSEP30-60×6	360	≥0.25	3m or 6m	2.844	8.532	17.064
CCSEP30-60×8	480	≥0.25	3m or 6m	3.781	11.343	22.687
CCSEP30-80×8	640	≥0.25	3m or 6m	5.04	15.12	30.241
CCSEP30-25×4	100	≥0.40	3m or 6m	0.805	2.414	4.829
CCSEP30-27×7	189	≥0.40	3m or 6m	1.503	4.51	9.02
CCSEP30-30×3	90	≥0.40	3m or 6m	0.73	2.191	4.382
CCSEP30-30×4	120	≥0.40	3m or 6m	0.965	2.896	5.791
CCSEP30-40×4	160	≥0.40	3m or 6m	1.286	3.858	7.716
CCSEP30-40×5	200	≥0.40	3m or 6m	1.599	4.797	9.593
CCSEP30-50×5	250	≥0.40	3m or 6m	1.998	5.993	11.986

Above is the normal size and can be customized according to the customer's requirement.

Product Application

Copper Clad Steel Flat Bar is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.

Product Packing

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
