As copper-bonded ground rods supplier, Bailijia offer the most economical & popular copper-bonded ground rods with low price .which is made of low carbon steel core bonded 99.9% pure electrolytic copper.
The copper-bonded ground rods have characters of anti-corrosion and ductility, which is superior than common copper clad steel rod and easy to install deeply.
|
Material |
Copper Clad Steel |
|
Copper Thickness |
≥0.254mm |
|
Copper Purity |
99.9% |
|
Tensile strength |
≥580N/mm2 |
|
Straightness error |
≤1mm/m |
|
Service life |
≥30years |
|
Diameter |
according to customer's requirement |
|
Function |
Used in grounding and lightning system |
|
Type |
Threaded or flat or pointed |
|
Available service mode |
OEM,ODM |
|
Certificate |
ISO9001:2008,CE,SGS |

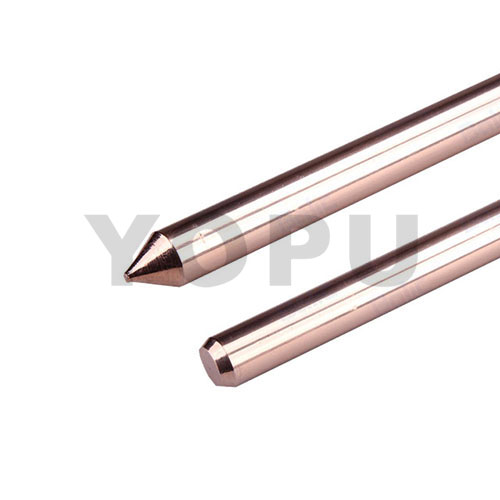

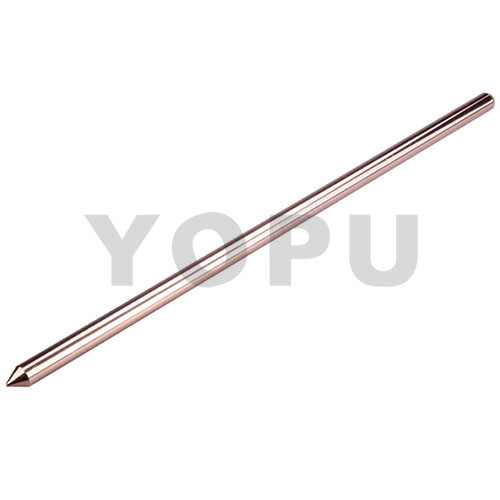

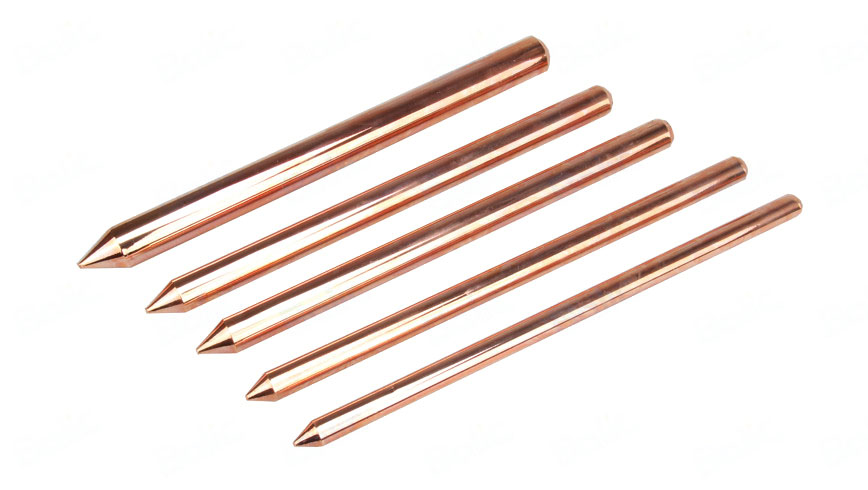

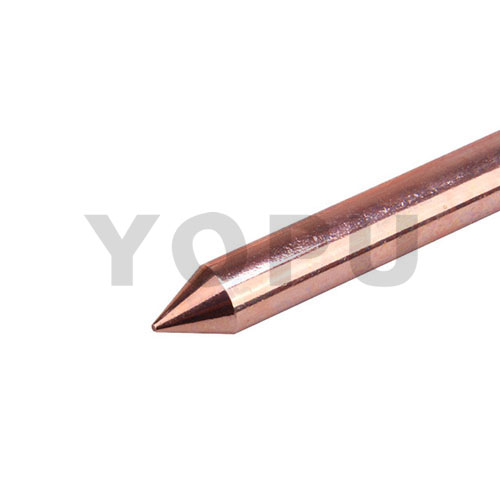

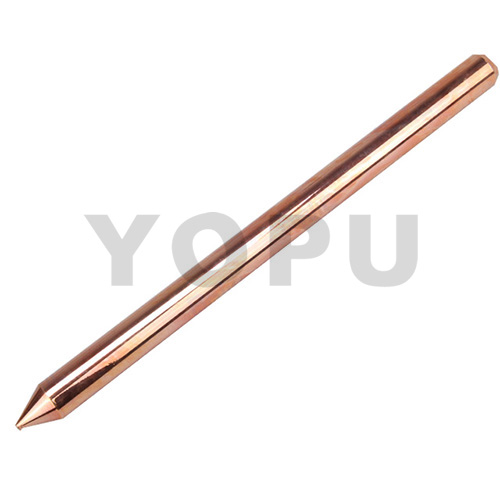

Copper-Bonded Ground Rod,Pointed:
|
Product specifications |
Copper Thickness（mm） |
Diameter（mm） |
Length（mm） |
Weight（kg） |
|
CCSEP20-φ14.2x1500 |
0.254 |
14.2 |
1500 |
1.87 |
|
CCSEP20-φ14.2x1800 |
0.254 |
14.2 |
1800 |
2.24 |
|
CCSEP20-φ14.2x2500 |
0.254 |
14.2 |
2500 |
3.1 |
|
CCSEP20-φ14.2x3000 |
0.254 |
14.2 |
3000 |
3.73 |
|
CCSEP20-φ16 x1500 |
0.254 |
16 |
1500 |
2.37 |
|
CCSEP20-φ16x1800 |
0.254 |
16 |
1800 |
2.84 |
|
CCSEP20-φ16 x2500 |
0.254 |
16 |
2500 |
3.94 |
|
CCSEP20-φ16 x3000 |
0.254 |
16 |
3000 |
4.73 |
|
CCSEP20-φ17.2x1500 |
0.254 |
17.2 |
1500 |
2.73 |
|
CCSEP20-φ17.2x1800 |
0.254 |
17.2 |
1800 |
3.28 |
|
CCSEP20-φ17.2x2500 |
0.254 |
17.2 |
2500 |
4.56 |
|
CCSEP20-φ17.2x3000 |
0.254 |
17.2 |
3000 |
5.47 |
|
CCSEP20-φ18x1500 |
0.254 |
18 |
1500 |
3 |
|
CCSEP20-φ18 x2500 |
0.254 |
18 |
2500 |
4.99 |
|
CCSEP20-φ18 x3000 |
0.254 |
18 |
3000 |
5.99 |
|
CCSEP20-φ20x1500 |
0.254 |
20 |
1500 |
3.7 |
|
CCSEP20-φ20 x2500 |
0.254 |
20 |
2500 |
6.16 |
|
CCSEP20-φ20 x3000 |
0.254 |
20 |
3000 |
7.39 |
|
CCSEP20-φ25x1500 |
0.254 |
25 |
1500 |
5.78 |
|
CCSEP20-φ25x2500 |
0.254 |
25 |
2500 |
9.63 |
|
CCSEP20-φ25 x3000 |
0.254 |
25 |
3000 |
11.55 |
Above is the common size, we also can do according to your requests. Please contact us to get to know more information about our products and service.
copper-bonded ground rods is used for earthing system of power plant, transformer station, tower, communication station, airport, railway, subway station , high building, computer room, petro plant, oil reservoir in the environmental of moist , saline and alkaline, acid and chemical corrosion medium environmental.
The installation of copper coated carbon electrode is very flexible, both hammer and electric pick are ok .In the bad soil condition ,please drill and then install .
1.When installing the rod deeply with hammer , please fit the drilling head to protect copper layer and connect multi grounding rod with coupler ;
2.When installing the rod deeply in rock or other hard soil area with drilling tool ,please refer to below two choice:
1).Before installing rod ,please drill hole and then fill bentonite and water full to reduce electric resistance
2)Fill bentonite and water after installing the rods to reduce electric resistance
All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
