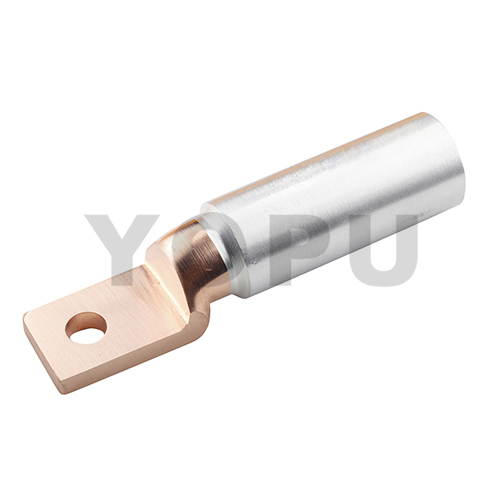

Features:
1.The solid palm eliminates the ingress of moisture.
2.Prefilled with jointing compound.
3.Friction welded.
4.Material: Cu≥99.9% ,Al≥99.5 %
| Item No. |
φ±0.3 |
D±0.2 |
d±0.2 |
L±2 |
L1±2 |
W±0.2 |
S±0.2 |
| DTL-2S-10 |
8.5 |
16 |
4.5 |
87 |
42 |
14.0 |
4.2 |
| DTL-2S-16 |
8.5 |
16 |
5.5 |
87 |
42 |
14.0 |
4.2 |
| DTL-2S-25 |
8.5 |
16 |
7.0 |
87 |
42 |
14.0 |
4.2 |
| DTL-2S-35 |
8.5 |
16 |
8.5 |
87 |
42 |
14.0 |
4.2 |
| DTL-2S-50 |
10.5 |
20 |
9.5 |
100 |
50 |
17.0 |
5.2 |
| DTL-2S-70 |
10.5 |
20 |
11.5 |
100 |
50 |
17.0 |
5.2 |
| DTL-2S-95 |
10.5 |
20 |
13.0 |
100 |
50 |
17.0 |
5.2 |
| DTL-2S-120 |
13.0 |
25 |
15.0 |
120 |
60 |
21.0 |
6.2 |
| DTL-2S-150 |
13.0 |
25 |
16.5 |
120 |
60 |
21.0 |
6.2 |
| DTL-2S-185 |
13.0 |
32 |
18.0 |
125 |
60 |
25.0 |
7.2 |
| DTL-2S-240 |
13.0 |
32 |
19.5 |
125 |
60 |
25.0 |
7.2 |
| DTL-2S-300 |
13.0 |
34 |
23.5 |
145 |
65 |
30.0 |
8.0 |
| DTL-2S-400 |
13.0 |
40 |
26.0 |
150 |
70 |
32.0 |
8.0 |
| DTL-2S-500 |
13.0 |
40 |
29.0 |
150 |
70 |
32.0 |
8.0 |
