Application:

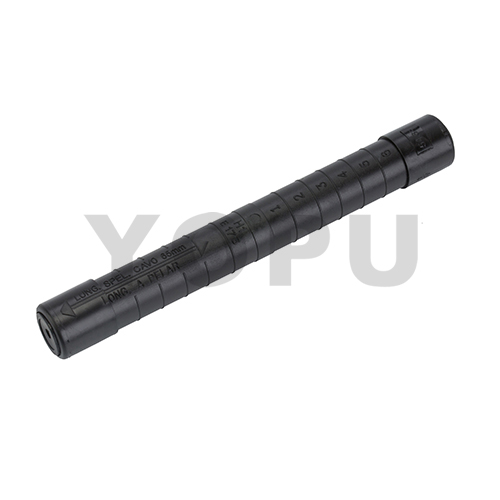

The MJPTN pre-insulated connectors are designed for LV-ABC systems with a neutral messenger. The MJPTN is used on the neutral conductor.
Features:
1) Stripping of cable insulation is required before insertion.
2) Cross-section of conductor can be easily identified by the color code of rings.
3) Elastomeric ring and pre-filled grease enable super waterproof performance.
4) Pre-filled with jointing compound.
5) Watertightness test carried out at 6kV for 1 minute under water.
6) Insulation tube is made of weather and UV resistant polymer.
7) Standard: EN 50483-4 , NFC 33-021

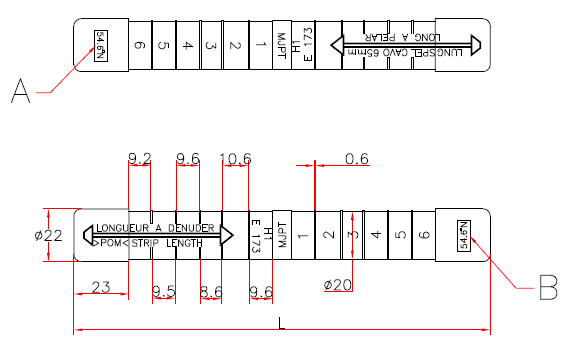

Item No. |
Cable Size(mm²) |
Length
L |
| A |
B |
| MJPTN 54.6/54.6 |
54.6 |
54.6 |
174 |
| MJPTN 54.6/70 |
54.6 |
70 |
174 |
| MJPTN 70/70 |
70 |
70 |
174 |
| MJPTN 95/95D |
95 |
95 |
174 |
