Tinned Copper Lug/Copper Connecting Terminals

Product Description

Bailijia offer the most economical&popular Copper Lug with competitive price .which is made with pure copper or tinned copper or aluminium material.We produce Copper Lug according to the national standard and industrial standard.It is used as connection for power line and linghting conductor.

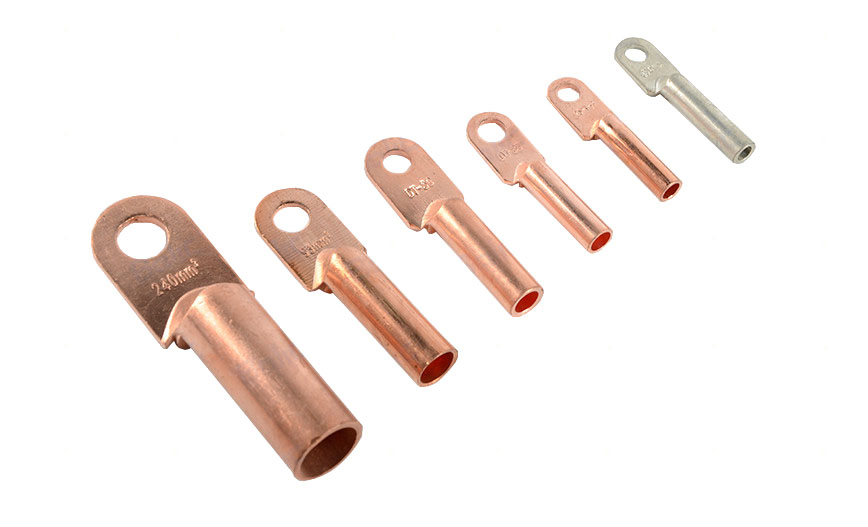

Copper Lug (1)

Product Parameter
Material

Copper or tinned copper or aluminium

Size According to customer's requirement
Life More than 50 years

Characters

Easy installation

Product Size

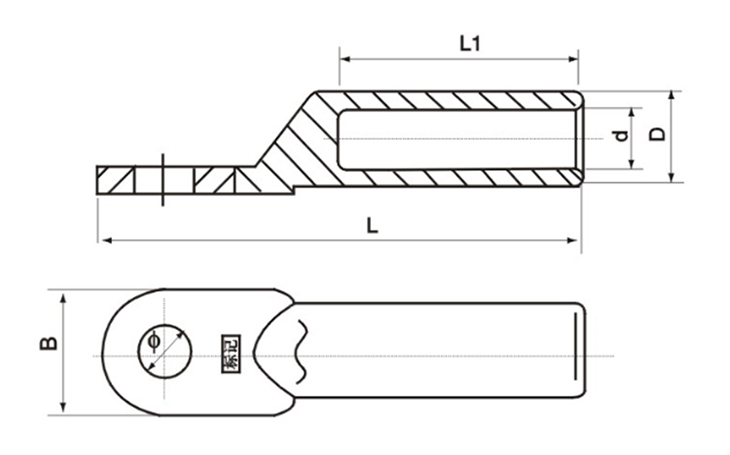

COPPER LUG

Type

Φ

D

d

L

L1

B

DT-10

8.5

9

5.3

62

28

16

DT-16

8.5

10

6.5

68

30

16

DT-25

8.5

11

7

70

33

18

DT-35

10.5

12

8.5

80

36

20.5

DT-50

10.5

14

9.5

85

38

23

DT-70

12.5

16

11.5

95

43

26

DT-95

12.5

18

13.5

104

46

28

DT-120

14.5

20

15

112

49

30

DT-150

14.5

22

16.5

120

51

34

DT-185

16.5

25

18.5

125

55

37

DT-240

16.5

27

21

136

60

40

DT-300

21

31

23.5

155

66

50

DT-400

21

34

26.5

170

75

50

DT-500

21

38

29

190

75

60

DT-630

21

45

35

220

85

80

DT-800

21

50

38

260

85

100

Product Application


Copper Lug is used for lightning protection of building,conductor of the fastening and connection of the net work,Use the matched fittings will make the lightning system easy to install and extend the using life.


Product Packing

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
