Tape to Tape Connectors/Cross Joint Clamp/Square Clamp

Product Description

Electrical ground clamp is suit for using conductors in the earthing system,which is made of brass material,match with color zinc screw.We produce electrical ground clamp according to the national standard and industrial standard.

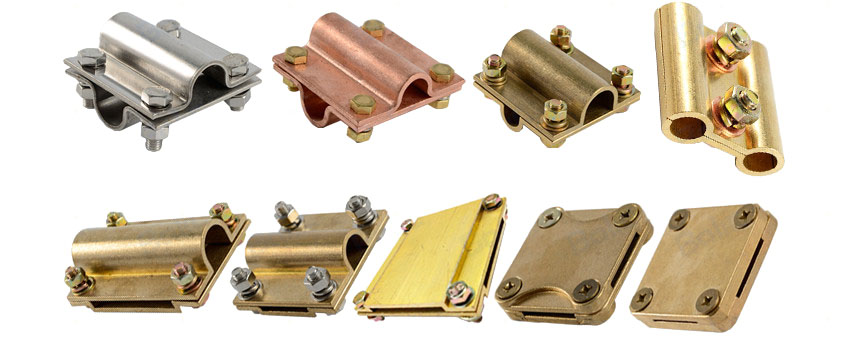

Cross Clamp (1)

Product Parameter

Material	Brass
Size	According to customer's requirement
Life	More than 50 years
Function	Connecting conductors
Characters	Easy installation ,good conductivity,cost low

Product Size

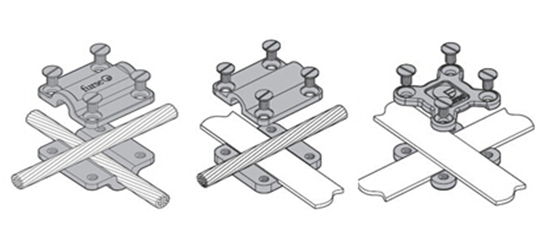

十字线夹

Round to Round Connectors:

Part No.	Size	Weight
CTC001	50mm2	0.25kgs
CTC002	70mm2	0.29kgs
CTC003	95mm2	0.32kgs

Tape to Tape Connectors:

Part No.	Size	Weight
TTT001	25x3mm	0.12kgs
TTT002	25x6mm	0.30kgs
TTT003	50x6mm	0.60kgs

Tape to Round Connectors:

Part No.	Size	Weight
CTT001	20X3mm to 50mm2	0.28kgs
CTT002	25x4mm to 70mm2	0.30kgs
CTT003	30x5mm to 95mm2	0.32kgs

Product Application

Electrical ground clamp is used for lightning and earthing protection of building,conductor of the fastening and connection of the net work,Use the matched fittings will make the lightning and earthing system easy to install and extend the using life.

Product Packing

All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
