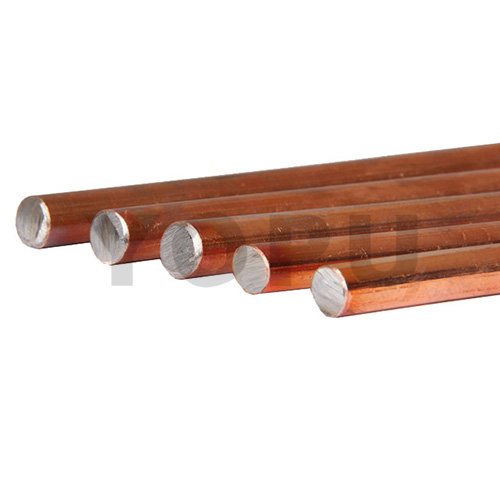

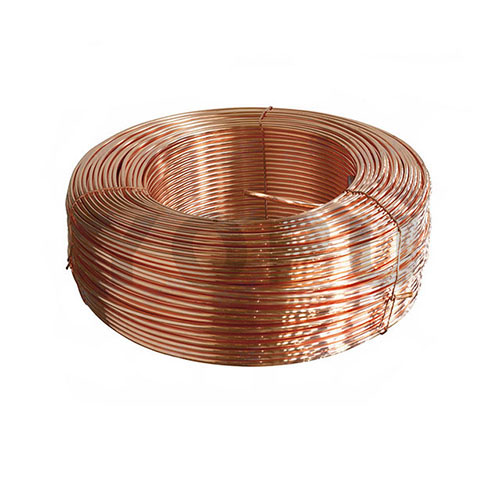

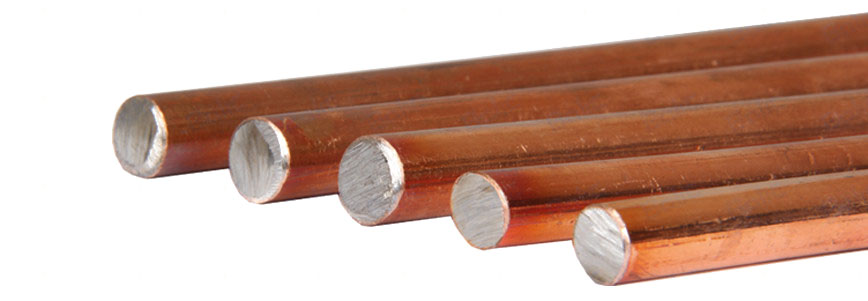

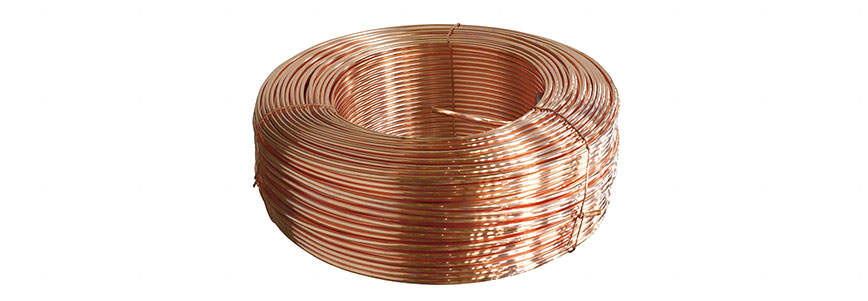

Bailijia offer the CU-BOND Round Conductors,which is made of 195B cold-drawn round steel coated with 0.254mm copper .The copper layer is fastness and anti-corrosive,when bent the copper won't fall off and craze. Low Carbon Steel Wire Rod is used widely for the connection between earth mat and earth rod.
| Material | Copper clad steel |
| Tensile Strength | Between 560Mpa and 1040Mpa |
| Life | More than 50 Years |
| Characters | Easy installation ,Good conductivity |
| Customized | OEM or ODM mode service |
| Certification | ISO9001:2008 |
|
Product specifications |
Diameter (mm) | Copper thickness (mm) | linear type of Packing(pcs) | shaft type of Packing(roll) | Diameter error(mm) |
| CCSEP20-φ8 | 8 | ≥0.254 | 6m | 100-500m | ±0.08 |
| CCSEP20-φ10 | 10 | ≥0.254 | 6m | 100-500m | ±0.08 |
| CCSEP20-φ12 | 12 | ≥0.254 | 6m | 100-500m | ±0.10 |
| CCSEP20-φ14 | 14 | ≥0.254 | 6m | 100-500m | ±0.10 |
| CCSEP20-φ16 | 16 | ≥0.254 | 6m | 100-500m | ±0.10 |
| CCSCC30-φ8 | 8 | ≥0.8 | 6m | 100m | ±0.08 |
| CCSCC30-φ10 | 10 | ≥0.8 | 6m | 100m | ±0.08 |
| CCSCC30-φ12 | 12 | ≥0.8 | 6m | 100m | ±0.10 |
| CCSCC30-φ14 | 14 | ≥0.8 | 6m | 100m | ±0.10 |
| CCSCC30-φ16 | 16 | ≥0.8 | 6m | 100m | ±0.10 |
CU-BOND Round Conductors is used for earthing system of power plant ,transformer station ,tower ,communication station ,airport, railway, subway station , high building ,computer room ,petro plant ,oil reservoir in the environmental of moist ,saline and alkaline ,acid and chemical corrosion medium environmental.
All of our products are with strong packing and free of charge, we also can provide packing according to customer’s requirement.
